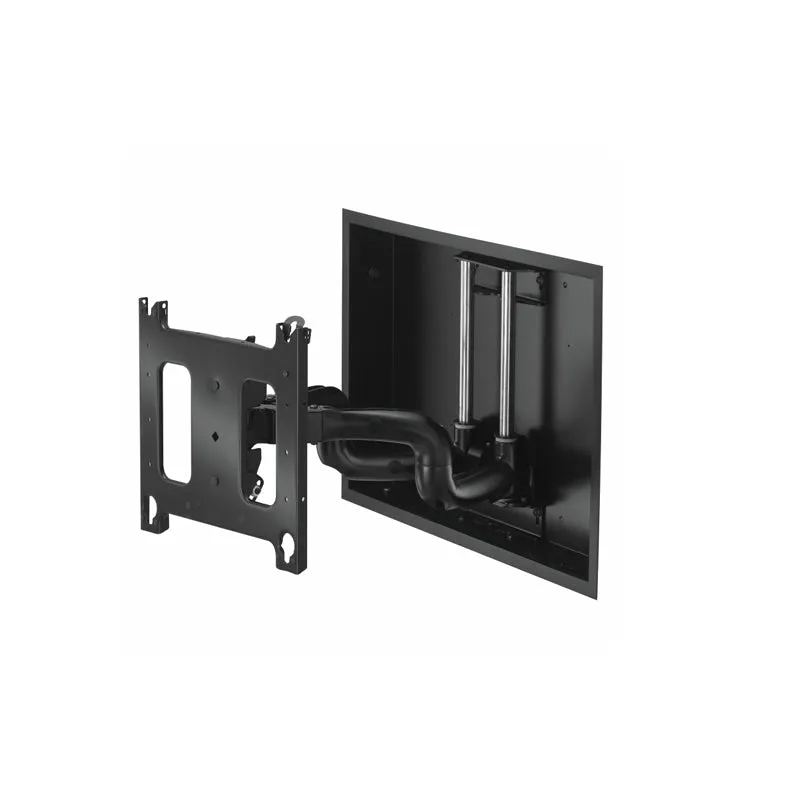

The PNRIW is a dual arm in-wall swing arm mount designed to create a low-profile installation.

Must order a PAC501 In-Wall Accessory (No seperate interface bracket necessary for the PNRIWUB, this comes with the PSBUB)

• Ships fully assembled to save on installation time
• Easily installs into PAC501 to create an ultra low profile installation
• Extends over 22″ (569 mm) for viewing from any angle

Specifications:

• CertificationsUL Listed
• ColorBlack
• Maximum Extension22″ (558.8mm)
• Minimum Depth0.6″ (15.2mm)
• Mounting Pattern Compatibility (Universal Versions)200 x 200mm – 862 x 517mm
• NotesMust order PAC501B In-Wall Box separately
• Pivot Numerical Value /- 76.5° (depending on screen width)
• Post-Installation Leveling RollYes
• Shipping Weight 61.7 lbs (27.99 kg)
• Solution TypeUniversal
• Tilt 2° , – 15°
• Typical Screen Sizes 42 – 86″
• Wall Stud Compatibility In16″ (406 mm)
• Weight Capacity 200 lbs (90.7 kg)
• OrientationLandscape, Portrait
